Müüa väga heas korras LUXMAN L-503S High-End Integrated Amplifier. Supper hea heliga. Tehtud ka väike hooldus ja puhastus. Kõik on ka originaal midagi vahetatud ei ole.
Model: L-503s
Type: Integrated amplifier
Years of manufacture: 1997 - 2000
Made in: Japan
Color: Front aluminum gold, housing cover gray
Remote control: yes
Power consumption:
Dimensions: 467 x 179 x 440 mm
Weight: 14 kg
Original price approx.: 139'000 Yen (Japan 1997), RRP: 2'998 DM

''Connections

Number of inputs:
Unbalanced:
Phono MM: 2.5 mV, 47 kOhm.
Tuner: 150mV / 47kOhm
CD: 150mV / 47kOhm

Line 1, 2: 150mV / 47kOhm
Tape 1, 2: 150mV / 47kOhm
Balanced:

XLR Line: 300mV / 66kOhm
Number of outputs:
Unbalanced:
Tape Rec 1, 2: 1V / 300 Ohm, max. 7.5V
2 pairs of speakers
Headphones

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2x 65 W
4 Ohm:
Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion:
0,005% (1kHz / 8 Ohm)
0.03% (20Hz - 20 kHz, 8 Ohm)
Attenuation factor:
Frequency Response:
20Hz - 20Khz (± 0.5 dB).
20Hz - 100Khz (- 3 dB)
Signal to noise ratio: 115dB
Frequency response: 20Hz - 20'000 Hz, + 0 dB, - 0.1 dB
Distortion factor: <0.006%
Signal-to-noise ratio:
Phono MM: 90 dB
High Level: 107 dB
Stereo Channel Separation:
Tone Control:
Bass: ± 6 dB at 100 Hz
Treble: ± 6dB at 10 kHz

Loudness: + 7 dB at 100Hz, + 5 dB at 10kHz

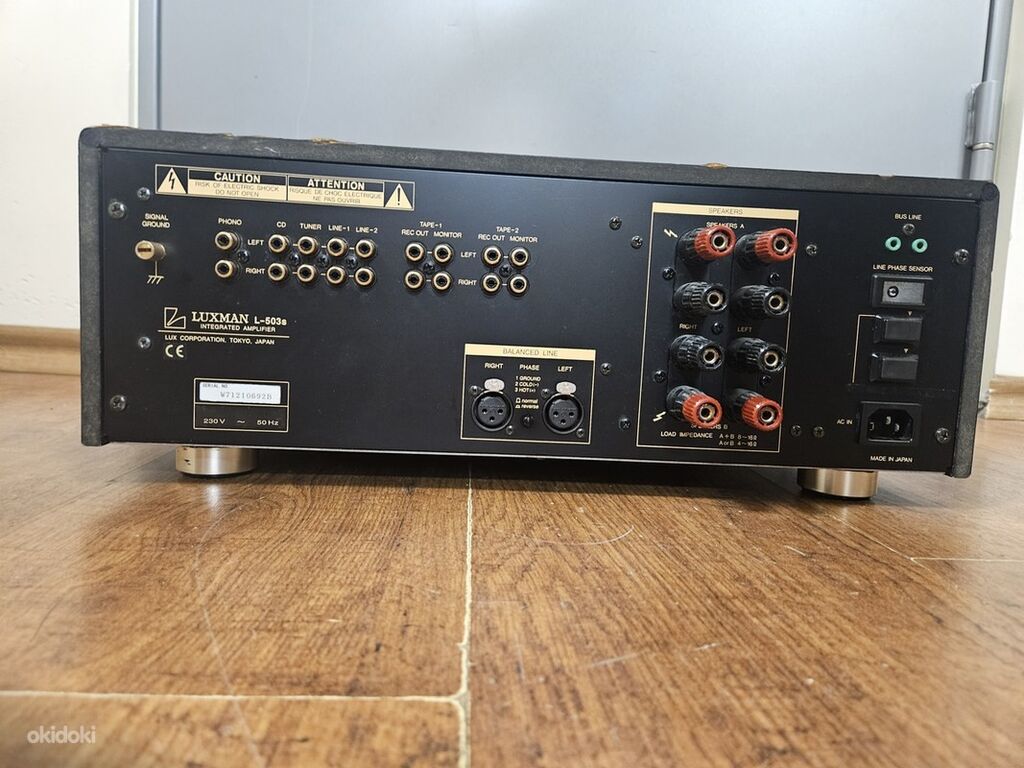

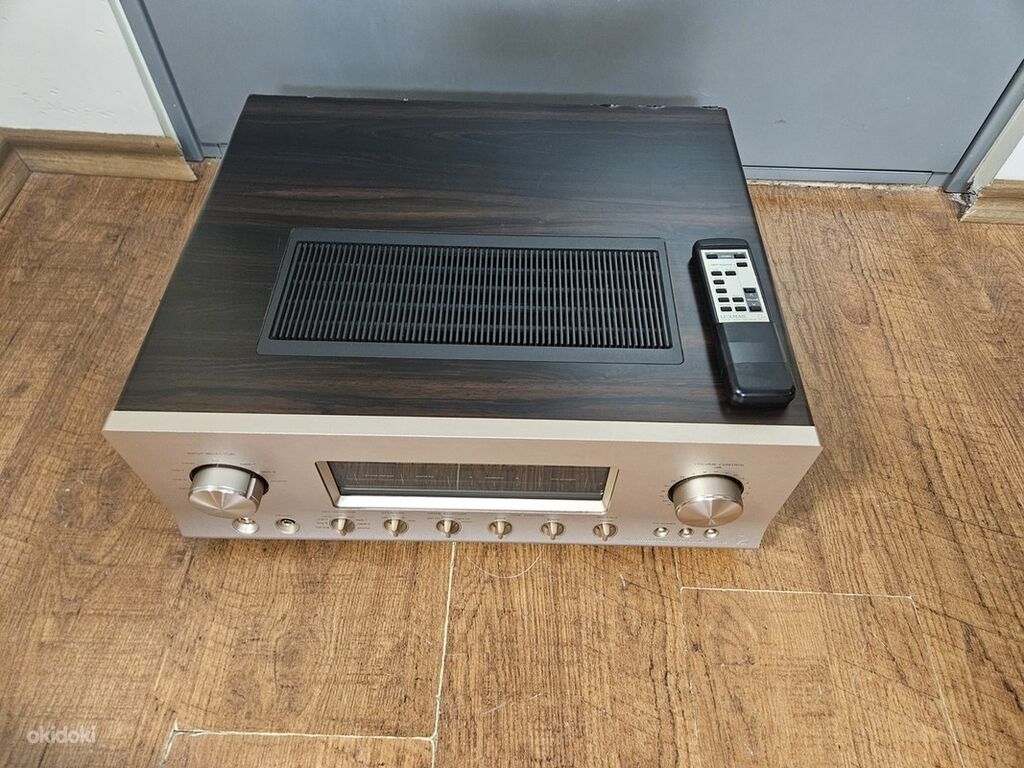

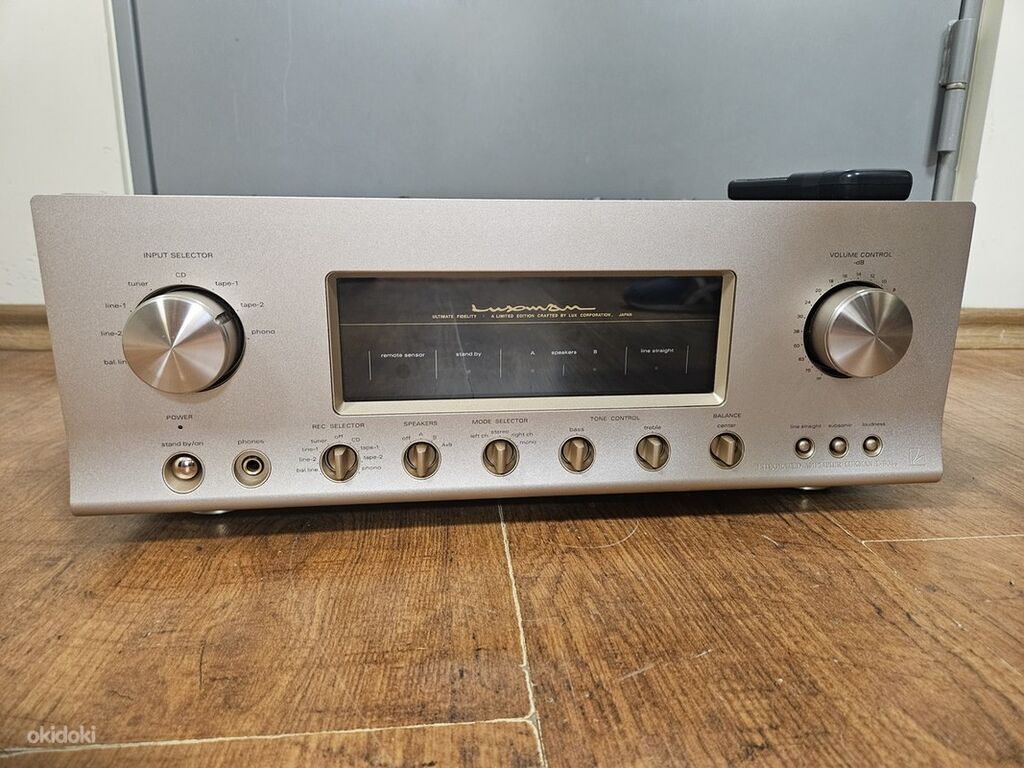

Pildid on originaal seadmestseadmest. Tule kohale ja kuula ise . Garantii ja hilisem vahetusvõimalus, kohale toimetamine üle Eesti. Tingimisvõimalus kohapeal olemas! Helista ja küsi lisa. Vaata ka meie teisi kuulutusi. Asume- Tallinn, Kesklinn, Türi 6, Tallinn ,Türi 6 Kabinet 75 a korpus peauksest
